Are AI CAD Tools Worth It? An Honest 2026 Verdict

Last updated: August 2026

Are AI CAD tools worth it? For weight-critical parts made with 3D printing, often yes; for a small shop turning out simple brackets, often not yet. The honest answer depends on which kind of AI you mean and what you make, because “AI CAD” bundles together one mature technology and two immature ones. This guide separates them and gives a worth-it verdict by scenario. For the wider toolkit, see our guide to the best AI tools for mechanical engineering and the pillar on the best AI tools for engineers.

Three very different things called “AI CAD”

Most of the confusion around this question comes from lumping three tools together. They differ in how proven they are, so weigh them separately.

One honesty check worth remembering: Onshape’s AI Advisor is an advisory copilot that, per PTC, does not do generative design at all (Onshape). Generative DESIGN and generative-AI text-to-CAD are not the same thing, and the marketing rarely makes that clear.

What the worth-it evidence actually shows

Generative design is the one bucket with a real track record. The canonical example is a General Motors seat bracket redesigned with Autodesk’s generative tools: about 40 percent lighter and 20 percent stronger than the original, consolidating eight components into one, a result confirmed by independent trade press, not just the vendor (CompositesWorld). A peer-reviewed gear-wheel study reported a mass reduction in the 37 to 46 percent range while keeping deformation acceptable (NCBI). The mechanism is that AI-enabled workflows let teams evaluate several times more design variants per program (McKinsey).

The caveats are just as real. Generative geometry is often hard to make outside 3D printing, so the savings can evaporate in manual cleanup. Correctly stating loads and constraints is difficult, and bad problem setup produces bad designs, which is why reported outcomes span anywhere from 15 to 92 percent. And the output is a starting point that must be validated by FEA and testing, never a finished part. For the analysis side of that check, our guide to AI structural analysis software covers the tools, and the broader limitations of AI in engineering apply here too.

Is adoption telling us it is worth it?

Adoption is real but immature, which is itself an honest signal. A 2025 industry survey put AI use at 27 percent of architecture, engineering, and construction firms (Bluebeam, vendor-sourced). A 2026 survey of engineering leaders found 69 percent using AI copilots, yet under 10 percent running mature, scaled programs (Manufacturing Dive). And a wide look across companies found only about 5.5 percent seeing real financial returns from AI so far (McKinsey, via CoLab). Read together: plenty of teams are trying AI CAD, few have made it pay yet, and the ones who have tend to have a specific, weight-critical use case.

Worth it for whom, and not yet for whom

The verdict is not one-size-fits-all.

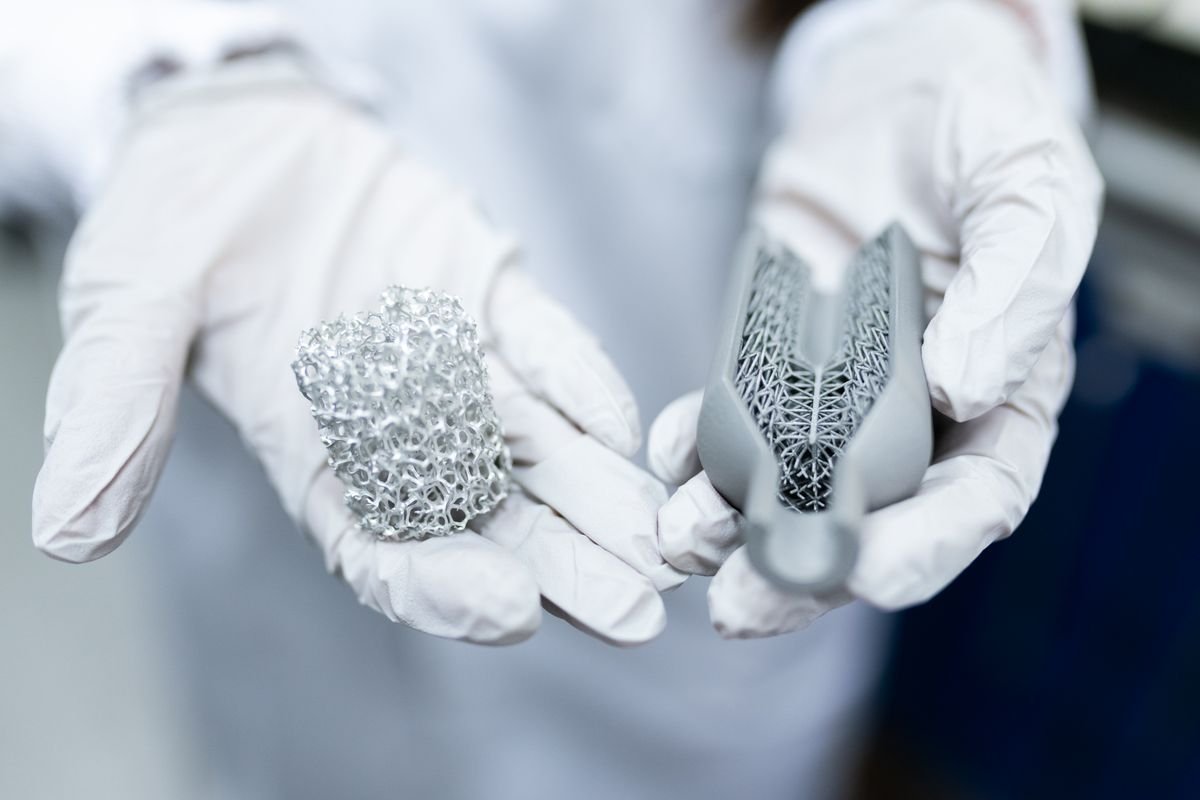

• Worth it if you design weight-critical or load-bearing parts where 30 to 50 percent lightweighting pays off, you already do metal 3D printing so organic geometry is producible, your work is variant-heavy and repetitive, and you have FEA and validation capacity in-house.
• Worth it if generative design is an extension of a suite you already own, such as Fusion, Creo, or NX, rather than a whole new platform to buy.
• Not yet worth it if you make small, simple, low-volume parts a competent engineer models faster by hand, you lack the license or cloud-compute budget, or you need output that runs on conventional CNC or casting without heavy cleanup.
• Not yet worth it if you are betting on text-to-CAD to replace CAD skills today, or you have no validation workflow, because you would be shipping unverified geometry.

If your interest is less about dedicated CAD tools and more about feeding a model to a general assistant, that is a different question, covered in our guide on whether you can upload CAD files to ChatGPT. And to see how AI CAD stacks up against the rest of the toolkit, our AI engineering tools comparison table lines the options up.

Frequently asked questions

Are AI CAD tools worth it?

For weight-critical parts made with additive manufacturing, generative design is worth it and routinely cuts 30 to 50 percent of the mass. For simple, low-volume parts or shops without the license and compute budget, it is often not yet worth it. Adoption is real but immature, with under 10 percent of engineering teams running mature AI programs.

What is generative design, and is it worth it?

You set loads, materials, and manufacturing constraints, and the software iterates hundreds of optimized geometries. It is the most proven kind of AI CAD and is worth it when lightweighting has real payoff and you can manufacture organic shapes.

Can AI design CAD models from text?

Partially. Tools like Zoo.dev and Adam CAD turn prompts into editable 3D geometry, but they work best on single parts, not complex assemblies, and the output usually needs cleanup and validation. Treat text-to-CAD as a drafting accelerator, not a replacement for CAD skills.

Is AI CAD worth it for small shops?

Frequently not yet. Generative design leans on cloud credits and add-on extensions, and text-to-CAD startups bill per minute, so cost and complexity are the top adoption barriers. A small shop making simple parts often models them faster by hand.

Does Fusion have AI?

Yes. Fusion offers generative design plus an assistant for natural-language commands, automated 2D drawings, and prompt-to-geometry, though the newest text-to-geometry features are still early.

Is generative design the same as text-to-CAD?

No. Generative design is mature, physics-driven topology optimization; text-to-CAD is newer and less reliable. Some copilots, such as Onshape’s AI Advisor, are advisory only and do not do generative design at all.

What are the risks of AI CAD tools?

Manufacturability of exotic shapes, a steep learning curve for constraint setup, outputs that still need FEA and testing to validate, and features and pricing that change fast.

The bottom line

Are AI CAD tools worth it? Generative design has earned its place for weight-critical, additive-friendly parts, and it is most worth it as an extension of a suite you already own with validation capacity in-house. AI copilots are a low-risk convenience, and text-to-CAD is a promising draft tool that is not yet a production modeler. The through-line is the same as everywhere else in engineering: let the AI accelerate the exploration, then verify the result and manufacture with a process you trust. Compare the wider field in our AI engineering tools comparison table, and for structural checking see our guide to AI structural analysis software.

---

Sources

• Autodesk generative design and AI in Fusion (vendor): autodesk.com
• GM seat bracket, 40 percent lighter and 20 percent stronger (independent): CompositesWorld
• Peer-reviewed gear-wheel mass reduction: NCBI
• Generative design lets teams evaluate more variants: McKinsey
• Onshape AI Advisor does not do generative design (vendor): Onshape
• PTC Creo generative design (vendor): PTC
• AEC AI adoption and ROI: Bluebeam, 2025
• Engineering leaders using AI copilots, few mature programs: Manufacturing Dive, 2026
• Few organizations see real financial returns from AI: McKinsey State of AI 2025, via CoLab
