Structural Load Take-Down With AI: The Workflow, Step by Step

Last updated: August 2026

A load take-down follows gravity. You start at the roof, add every floor below it, and trace the accumulating load down through beams, girders, and columns until it reaches the foundations and the soil. It is methodical, repetitive arithmetic, which is why engineers keep asking whether AI can do it. The honest answer is that a language model can genuinely speed up a structural load take-down, but only as a method assistant. It explains the method and sets up the arithmetic; it does not establish the load path, supply the code values, or own the design of a member that a licensed engineer has to stamp. This guide gives you the workflow, then marks exactly where AI helps and where it must not.

It sits under our roundup of AI tools for civil engineers and pairs with our broader look at whether AI can do engineering calculations at all.

What a load take-down actually is

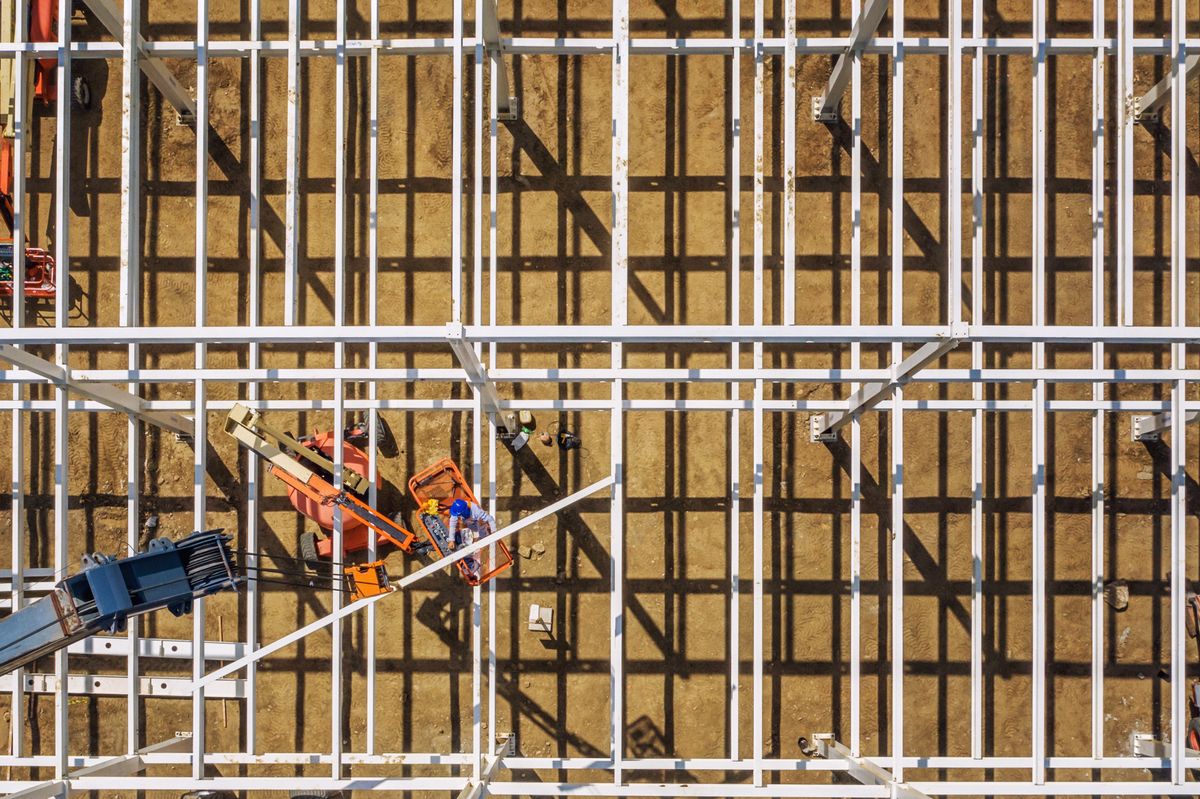

A load take-down, sometimes written load takedown or load tracing, works from the top of the structure downward. Each element carries the load delivered to it and passes the total to whatever supports it. Roof loads reach rafters or trusses, which bear on walls or beams, which frame into girders, which land on columns or load-bearing walls, which carry everything into the foundations and then the soil. For any vertical element, the load is the cumulative sum of everything above it.

Two ideas hold the method together. The first is the load path: the continuous, unbroken chain that carries load to the ground. Identifying it is an engineering-judgment task, and a break in it, from a transfer beam, a cantilever, or an offset column, changes everything below. The second is that gravity load paths run vertically, while lateral loads from wind and seismic follow a different route to the foundation. Confuse the two and the take-down is wrong from the start, which is one reason the method stays a human responsibility.

The loads and the code

Before any arithmetic, you need the loads, and they come from a code, not from memory. The gravity loads are dead load, the permanent self-weight, and live load, the movable occupancy load, plus snow, rain, and ice where they apply. Lateral loads from wind and seismic are handled separately. In the United States these loads and the way they are combined are set by ASCE/SEI 7, Minimum Design Loads and Associated Criteria for Buildings and Other Structures, with strength combinations in section 2.3 and allowable-stress combinations in section 2.4. International work uses the Eurocodes, where EN 1991 defines the actions and EN 1990 sets the combination rules.

Which combinations govern, and which load values apply, depends on the adopted edition and the local jurisdiction. This is precisely the layer where an AI answer is dangerous, because a plausible-looking combination equation or load factor pulled from the model’s memory can be from the wrong code or simply invented. The values come from the code text in front of you.

The workflow, step by step

Here is a defensible process, with AI’s genuine role called out at each step.

• 1. Establish the loads. Build the dead-load take-off layer by layer, and read the live, snow, and wind values from the adopted code. AI can explain what each load type means and organize the build-up; it must not supply the code magnitudes.
• 2. Define the framing and the load path. Map what supports what, from deck to foundation, and confirm the path is continuous. AI can explain load-path principles and one-way versus two-way spans; you decide the actual path for your building.
• 3. Compute tributary areas. Each member carries the load from the area that drains to it, bounded roughly by the midspans to adjacent supports. The tributary load is that area times the applied pressure, plus any line or point loads. AI can set up and check the geometry and formulas, but verify the areas against the real framing plan, because it can mis-assign them on an irregular grid.
• 4. Sum the loads down the path. Work member by member, roof beam to girder to column to footing, accumulating each floor and combining the load types per the code’s combinations. Each footing load is the cumulative total of everything above. AI can build the summation spreadsheet, draft the load schedule, and catch a unit slip; it must not supply the combination equations from memory.
• 5. Apply live-load reduction where the code allows it. For members with a large influence area, ASCE 7 permits a reduced design live load, because the whole area is unlikely to be fully loaded at once. The basic reduction is L = L0 x (0.25 + 15 / sqrt(KLL x AT)) in US units, with the reduced load not below half the unreduced value for a single-floor member or four-tenths for a member supporting two or more floors, and no reduction in certain occupancies such as assembly and garages. Supply the code formula and the inputs yourself; let AI run the arithmetic.
• 6. Document assumptions and the load path. Record every assumption, the path, and the schedule so a reviewer can follow it. AI is genuinely strong here, drafting a clean methodology write-up from your inputs.

Where AI helps, and where it must not

The genuine help is real: explaining the method, setting up the tributary arithmetic and the summation, drafting the load schedule, sanity-checking totals, and writing the documentation. Those uses save time without putting the analysis at risk.

The failures are specific, and each one can carry a wrong load all the way to a footing:

• It hallucinates numbers and equations. A language model will state load values, load factors, and combination equations with confidence, and they can be wrong or from the wrong code. Every value comes from the adopted code edition and jurisdiction.
• It misses a broken or lateral load path. It reasons from the text you give it, so it can assume continuity where a transfer beam or offset column breaks the path, and it can confuse gravity with wind or seismic routes.
• It misapplies live-load reduction. Wrong influence factor, reduction in a prohibited occupancy, or below the code floor.
• It does not own the stamp. A load take-down feeds member design that a licensed engineer reviews and seals. AI is a method assistant, not the engineer of record.

The rigorous analysis belongs to dedicated software, not a chatbot, and that is a separate category we cover in our look at AI structural analysis software.

The tools, and how much AI is really in them

The rigorous work belongs to purpose-built structural software. Pricing is mostly quote-based or subscription, so check each official site.

• SkyCiv is a cloud analysis suite that can auto-compute tributary areas and generate code load combinations for ASCE 7, the Eurocodes, and others.
• ClearCalcs is a cloud member-design platform whose load-linking feature tracks reactions down the path, so lower members update automatically.
• RISA-3D, Tekla Structural Designer, and ETABS are established analysis and design engines that handle gravity and lateral loads against a full model, with the code libraries built in.
• Niche tools such as LoadTakedown and Tribby3d are built specifically for gravity take-downs, and a plain spreadsheet paired with a language model remains the honest baseline, which is exactly where an AI helper earns its place.

General language models sit outside that list on purpose. They are method assistants: useful for explaining, setting up, and documenting, never the analysis engine, the source of code values, or the engineer who signs the drawings.

Frequently asked questions

Can AI do a structural load take-down?

It can help with one, but it should not produce the final result alone. Use it to explain the tributary-area method, set up the summation spreadsheet, and draft the load schedule from values you provide. It hallucinates load values and combination equations, can miss a broken load path, and does not own the design, so you supply the code values, define the path, and have a licensed engineer review the result. Treat it as a method assistant.

What is a tributary area?

A tributary area is the region of floor or roof whose load is carried by a particular member, bounded roughly by the midspans to the adjacent supports. The load on that member is the tributary area times the applied pressure, plus any line or point loads it also carries. Tributary areas are the basis of a load take-down, because they decide how much of each floor drains onto each beam and column.

How do loads travel from roof to foundation?

They follow the load path. Roof loads reach rafters or trusses, which bear on walls or beams, which frame into girders, which land on columns or bearing walls, which carry the accumulated load into the foundations and the soil. The path must be continuous, and each vertical element carries the cumulative sum of everything above it. A break in the path, such as a transfer beam, changes the loads below it.

Which code governs the loads in a take-down?

In the United States, loads and their combinations come from ASCE/SEI 7, with strength combinations in section 2.3 and allowable-stress combinations in section 2.4. International work uses the Eurocodes, with EN 1991 for the actions and EN 1990 for the combinations. The governing edition and any local amendments depend on your jurisdiction, which is why the values must come from the adopted code rather than from an AI model.

Do engineers still do load take-downs by hand?

Many do, especially for simpler structures and as a check on software. Dedicated analysis tools like SkyCiv, RISA, and ETABS automate the take-down against a full model, while a hand calculation in a spreadsheet remains common and is where an AI helper can set up the arithmetic. Either way, the load path and the code values are the engineer’s responsibility, and the design is reviewed and sealed by a licensed engineer.

Sources

• ASCE/SEI 7-22, Minimum Design Loads
• Tributary area explained (SkyCiv)
• Tributary areas (Ochshorn, Structural Elements, Cornell)
• EN 1990 load combinations (SkyCiv)
• Load tracing (SUNY Pressbooks)

Written by the CognitiveFuture editorial team. We build our guidance from published standards and official product documentation, and we label vendor statements as such. We do not independently benchmark any tool, and we do not treat AI-generated load values or results as reliable. A structural load take-down feeds member design that a licensed engineer must review, verify against the adopted code, and seal.
